Details |
Item Type |
LED Modules |
Length |
WS2811 LED PIXEL MODULE |
Certification |
CE,CCC,RoHS |
Width |
LED pixel |
Height |
LED MODULE |
Model Number |
LED Modules |
Features |
great for diy project |
Brand Name |
ledbluebell |
Voltage |
5v |
Color |
white |
Light Source |
led bulbs |
is customized |
Yes |
features |
full color |
pixel led |
ws2811 pixel module |
waterproof |
IP68 |
led lamp |
ws2811 round |
12mm rgb strip |
DC5V |
50PCS String |
LED String |
T1000S Controller |
WS2801 |
Unit Type |
lot (1000 pieces/lot) |
Package Size |
10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in) |
Package Weight |
6.5kg (14.33lb.) |

1000pcs DC5V 12mm WS2811 RGB LED Pixel module IP68 waterproof full color 50pcs a string perforator alphabet letter for sign
Specification:
Product Name:12mm LED pixel module WS2811
Diameter: 12MM
Input Voltage: DC5V
Power consumption: 0.3w
Light Source: F8RGB*1
IC type: WS2811

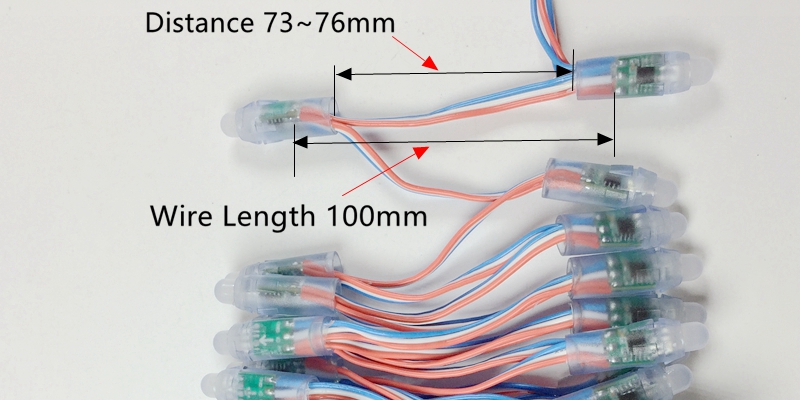

Distance between each pixel: 7.3-7.6 cm
Waterproof grade: IP68
Working temperature: -20 degree-60degree
Wire Cable color: RWB
Red (5V+)
Blue(5V-)
White(DAT)
RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each RGB LED and controller chip is molded into a \'dot\' of silicone. The dots are waterproof and rugged. There are four flanges molded in so that you can \'push\' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick. They\'re typically used to make outdoor signs
The pixels use 8mm diffused RGB LEDs, with a 120 degree beam width. The total max brightness of all LEDs is about 1600mcd but with the light more evenly distributed & mixed than a clear LED

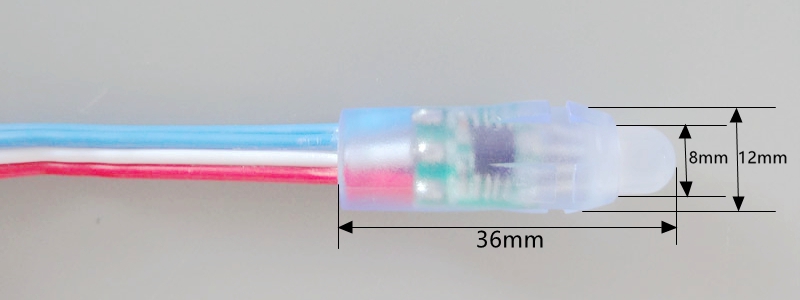

12mm diameter (0.45") 75mm deep (1.5")
80--100mm
50 pieces per string
These pixels use a WS2811 chip for full 24 bit color
5V power, 60mA maximum per pixel (LED on full white)
2-pin SPI-like protocol
UCS1903 ws2811 Datasheet for the chip inside each pixel
Brightness: Red = 3.3 Lumens/300 mcd, Green = 10 Lumens/1000 mcd, Blue = 2.7 Lumens/300 mcd (mcd calculation based on full 120 degree beam)
Package included:
20 x 50pcs ws2811 led pixel module DC5V
Size:


characteristic:
