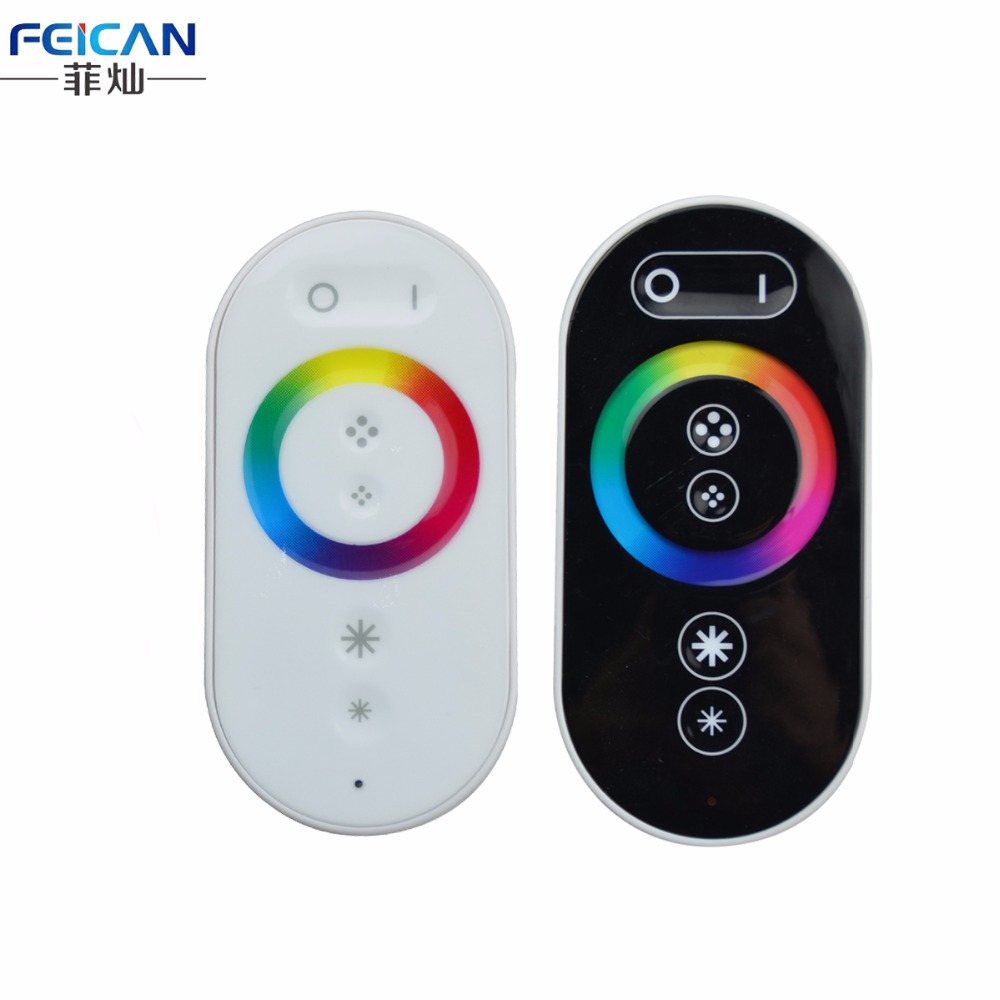

RF 6Keys Black/White Remote Controller DC12-24V 8A/CH 24A 3Channel RGB Iron Shell LED Controller For SMD5050 3528 RGB LED Strip
$14.42
Ex Tax: $14.42
- 5 or more $14.96
- 200 or more $14.69
- 1000 or more $14.42
Product Code: 4960857
Stock Instock
Overview
Details ...| Details | |
| Item Type | RGB Controler |
| Power Source | DC |
| Brand Name | FEICAN |
| Max. Load Power | 576W |
| Warranty | 2 years |
| Material | Iron |
| Model Number | FC-T1H-QH0Q8A |
| Connection Mode | common anode |
| Controled Method | RF touch control |
| Certification | CE,CCC,RoHS |
| Remote Distance | 15-20meters |
| Wattage | 288-576W |
| Oscillation frequency | 433.92Mhz |
| Applicable Lights | led strips |
| Voltage | 12-24V |
| Features | RF Controller |
| Working voltage | DC12-24V |
| output power | 12V:<288W, 24V:<576W |
| output current | 8A/CH |
| Static Power Consumption | <0.5w |
| controller dimension | L83 * W79 * H33 mm |
| Net weight | 250g |
| Button Number | 6 keys |
| Output channel | 3CHS (RGB) |
| Control mode | RF Touch |
| Unit Type | piece |
| Package Size | 20cm x 16cm x 8cm (7.87in x 6.30in x 3.15in) |
| Package Weight | 0.4kg (0.88lb.) |
RF 6Keys Black/White Remote Controller DC12-24V 8A/CH 24A 3Channel RGB Iron Shell LED Controller For SMD5050 3528 RGB LED Strip
Technical Parameters
Model: RF 6 keys controller
Working temperature: -20-60 C
Supply voltage: DC12V-24V (specify the required voltage in the order)
Function mode: 16 kinds
Output: 3 channels(RGB)
connection mode: common anode
Frequency: 433Mhz
Net weight: 250g
Controller dimension: L83 * W79* H33 mm
Output current: <8A (per circuit)
Output power: 12V / 8A <288W; 24V / 8A <576W
