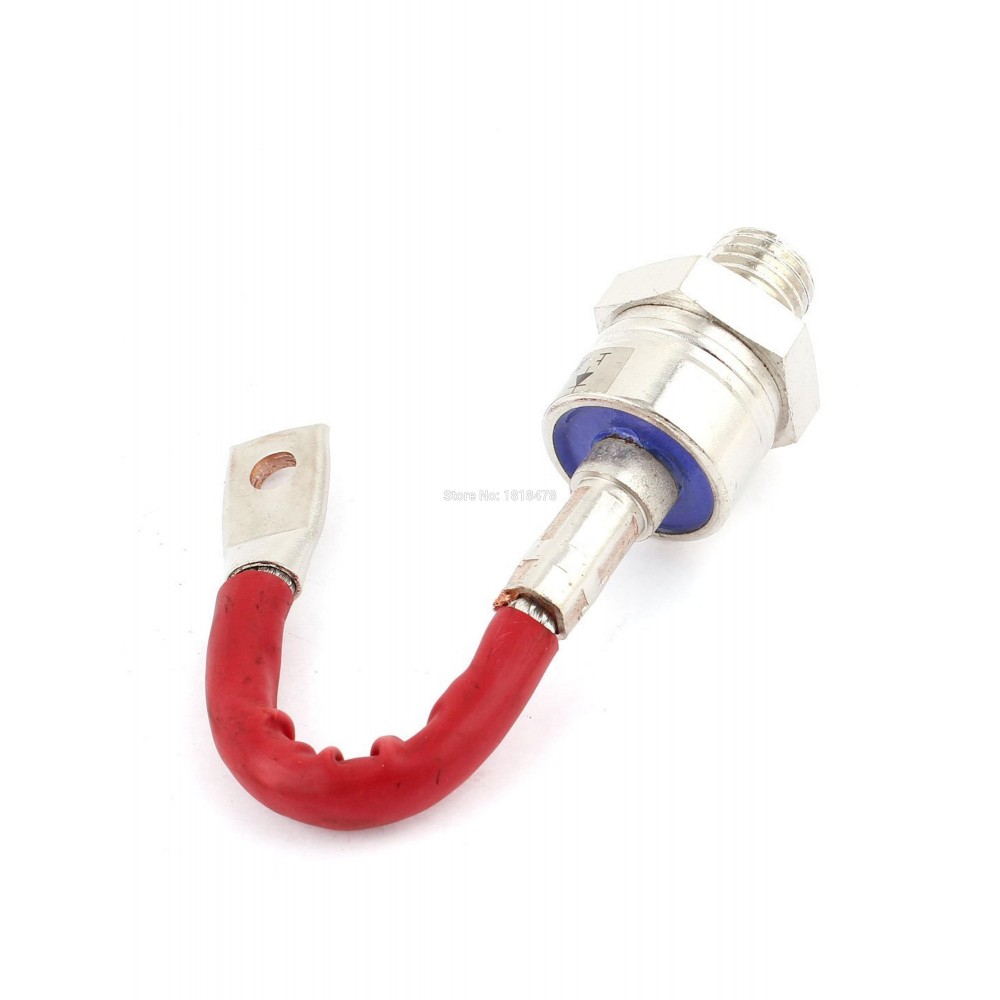

ZP-300A Stud Type Silicon Rectifier Diode 1600V 300A

ZP-300A Stud Type Silicon Rectifier Diode 1600V 300A

$16.96
Ex Tax: $16.96
  • 5 or more $17.60
  • 200 or more $17.28
  • 1000 or more $16.96
Product Code: 4965097
Stock Instock

Overview

Details ...
Details
Item Type Ballasts
Warranty 1
Model Number ZP 300A 1600V
Unit Type piece
Package Size 11cm x 9cm x 4cm (4.33in x 3.54in x 1.57in)
Package Weight 0.35kg (0.77lb.)
  • Product Name : Rectifier Diode;Model : ZP300A;Average Forward Current : 300A
  • Repetitive Peak Reverse Voltage(VRRM) : 1000V;Thread Diameter : 19mm / 0.75"
  • Main Body Size : 40 x 40 x 57mm / 1.6" x 1.6" x 2.2"(L*W*H);Overall Height : 230mm / 9"
  • Material : Metal, Ceramic;Color : As Picture Shown
  • Net Weight : 321g;Package Content : 1 x Rectifier Diode





  • Hermetic ceramic-metal stud structure.
  • Applications: used in rectifying melectric circuit in electrochemistry, electrolysis, electropleting, traction, power supply for switch gear operation, etc.
