Electronic Ballast for T4 Fluorescent Lamps Bulb Headlight of T4 Straight Fluorescent lamps 8-16W AC220V

Electronic Ballast for T4 Fluorescent Lamps Bulb Headlight of T4 Straight Fluorescent lamps 8-16W AC220V

$2.54
Ex Tax: $2.54
  • 5 or more $2.64
  • 200 or more $2.59
  • 1000 or more $2.54
Product Code: 4965095
Stock Instock

Overview

Details ...
Details
Item Type Ballasts
Matched Tube T5
Brand Name Flying Elephant
Warranty 1 Year
Ballast Electronic
Model Number AYZ-01
Power Factor Compensation Active
Features Portable

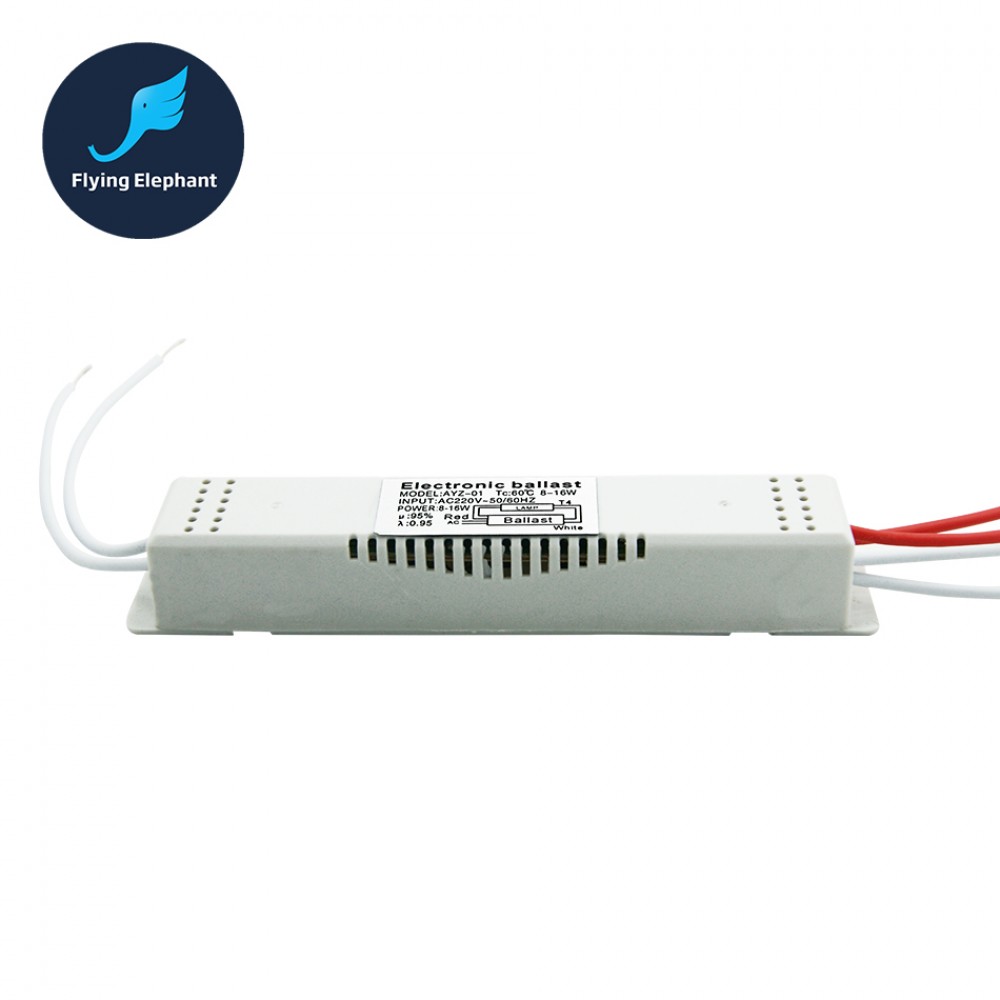

Item name T4 Universal Electronic Ballast
Input Voltage AC 220V 50 / 60Hz
Power Factor Above 0.65
Output Power 8 - 16W
Max Case Temperature 60C
Unit Type piece
Package Size 12cm x 15cm x 3cm (4.72in x 5.91in x 1.18in)
Package Weight 0.045kg (0.10lb.)

Basic Parameters

  1. The electronic ballast is mainly suitable for headlight of T4 straight fluorescent lamps. Features low temperature rise and noise, no flicker performance, this electronic ballast is widely used in offices, classrooms, factory, and meeting rooms. The general lifespan of this electronic ballast is 2 years and above.



    Specification:

    • Slim profile with programmed rapid start
    • Prevent fluorescent tube from flashing and buzzing when powered on
    • Provide energy savings in a wide range of indoor and outdoor lighting applications
    • Applications: Aluminum lamp, dome light, crystal lamp, mirror front lamp, etc
    • Wiring: Red cable for 220V AC power, white cable for output end
    • Model: AYZ-01
    • Input Voltage: AC 220V, 50 / 60Hz
    • Output Power: 8 - 16W
    • Power Factor: Above 0.6
    • Max Case Temperature: 60C
    • Size: Approx. 5 x 0.8 x 0.7 inch (fasten hole included)
    • Cable Length: Approx. 4 inch
    • Material: Plastic
    • Housing Color: White
