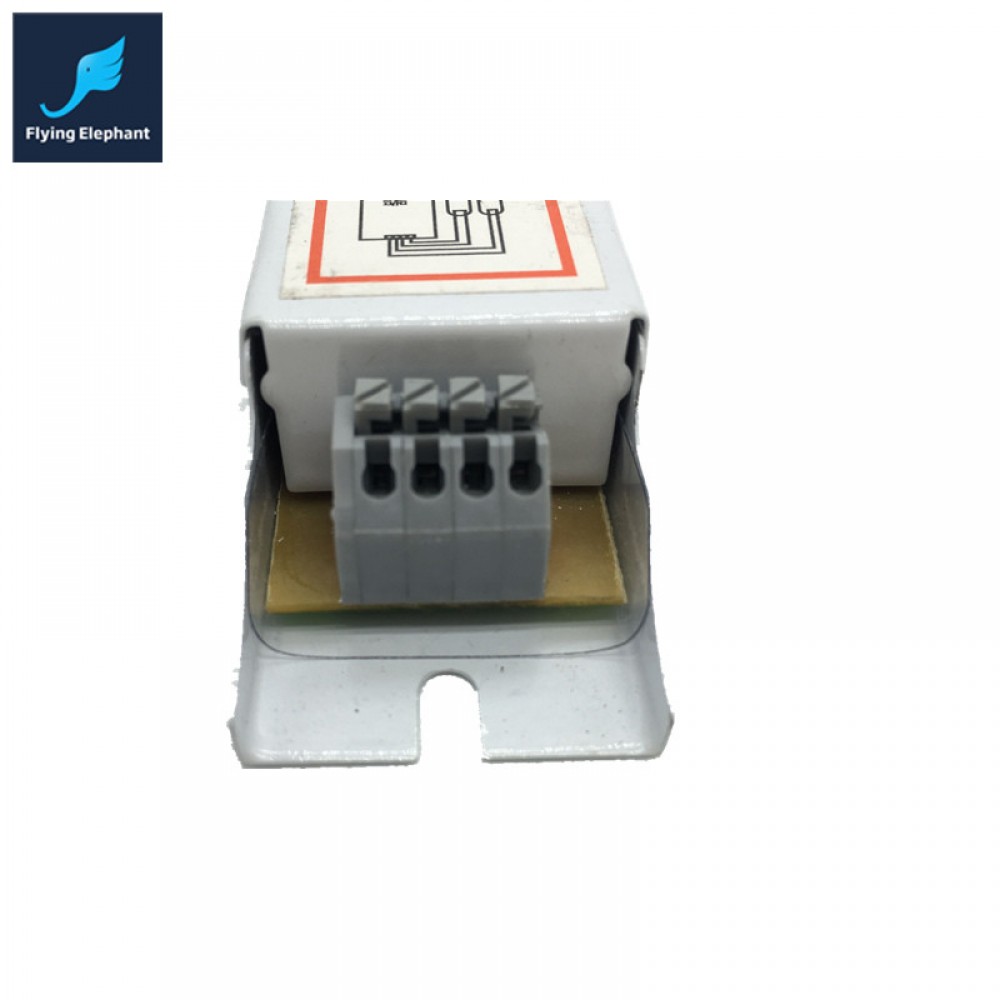

AC220V T5 Electronic Ballast For Fluorescent & Neon Lamp 2X28W Output Also use for 20W-30W lamps
$9.44
Ex Tax: $9.44
- 5 or more $9.79
- 200 or more $9.61
- 1000 or more $9.44
Product Code: 4965089
Stock Instock
Overview
Details ...| Details | |
| Item Type | Ballasts |
| Matched Tube | T5 |
| Warranty | Free |
| Model Number | EB2X28W |
| Features | Quality |
| Ballast | Electronic |
| Power Factor Compensation | Active |
| Product | T5 Electronic Ballast |
| Voltage | 220-240VAC |
| Type | 2 ports |
| Power | 2X28W(Also use for 20W-30W lamps) |
| Rated Current | 0.27A |
| Power factor | 0.95 |
| LM factor | 0.95 |
| Size | 23CM*3CM*2CM |
| Unit Type | piece |
| Package Size | 15cm x 18cm x 3cm (5.91in x 7.09in x 1.18in) |
| Package Weight | 0.14kg (0.31lb.) |
Note:
This is 2 outputs ballast, work for 2 lamps(Also work for 1 lamp).
Features
1, under normal temperature 170 ~ 240V supply voltage can starter, 198 ~ 242V working properly.
2, no flicker, no noise, healthy.
3, fully enclosed steel and fire-retardant material reduces radiation interference, safe and reliable.
4, high power factor low harmonic, energy efficient, green.
Instructions for use
1, you have chosen electronic rectifier nominal power should be selected rated lamp power (wattage) match.
2, the installation location may have provided do not drip or humidity higher than 85% of sites.
3, the process of using the lamp life if found will do (or not normal lamp serious black starter) should be replaced.
4, for safety reasons, before cleaning off the power to replace the lamp
Applications
Applied Grille, fluorescent lamps, fluorescent stent, etc.
